Temperature Test Chambers

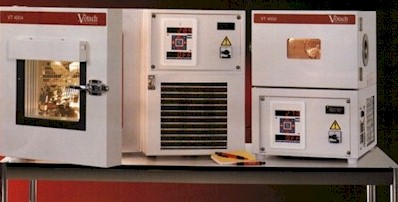

Mini test chambers VT 4/7

The test chambers VT 4002, VT 4004 and VT 7004 - our "minis" - offer an optimum solution with a test space volume of the 16 and/or 35 l when limited space is available.

The temperature range of the 16 l chamber is -40 degrees Celsius to +130 degrees Celsius and the range of the 35 l chamber is -40/-70 to +180 degrees Celsius.

Temperature conditioning efficiency renders this compact and yet very quiet series of systems suitable for universal applications.

Operation and control is identical with that of larger systems.

Temperature Test Systems

All of these extremely compact systems offer a remarkable test space volume. Even the 100 l system is capable of accommodating three 19" racks.

The system is equipped with two entry ports for connecting supply/measuring lines to electronic components.

Castors, provided as a standard feature, make these chambers highly mobile. The relation of external dimensions, test space volumes, efficiency and operating costs are excellent.

Rapid temperature cycles, high heat compensation and a low noise level make these systems highly favorable for use in laboratories.

Performance for constant and changing temperature ranges from -40/-70 degrees Celsius to + 180 degrees Celsius.

Although these chambers are one of a 1-phase design, they are extremely efficient.

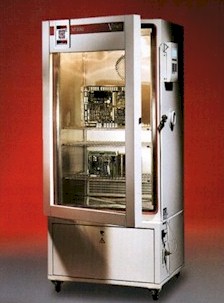

Testing System for Testing Assemblies - VT 3050

A 500 l test space that takes up less than 1 m� floor space.

The VT 3050 has ample space for accommodating your test specimens.

Modern microprocessor-controlled control and monitoring systems ensure reliable temperature tests ranging from -30 degrees Celsius to +100 degrees Celsius for a large variety of applications.

Aging of equipment
Constant temperature tests
Changing temperature tests on raw materials and finished products
Testing of total assemblies in the electrical and electronic industries
Functional tests applying various ambient temperatures
Ascertaining the "clouding" behavior of beer ("Forciertest")

A glass door (option) allows a clear view on the test specimen.
